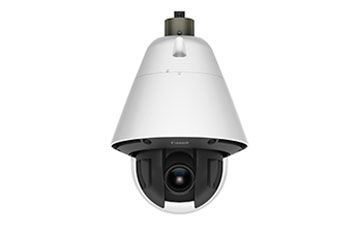

Canon VB-R11VE

VB-R11VE

Keep every outdoor angle covered

VB-R11VE

Kasulikud omadused

  • Excellent subject tracking with continuous panning & Auto Flip
  • Versatile monitoring with superb low light performance
  • Fast, accurate and intelligent with precise control
  • Outdoor-ready with vandal and environmental protection
  • Extreme low temperature start up and operation

Üksikasjad

Vaadake toodet Canon VB-R11VE üksikasjalikumalt

Excellent subject tracking with continuous panning & Auto Flip


The VB-R11VE effortlessly delivers high quality, detailed 1.3 MP images for live monitoring and recording. Continuous 360° panning and Auto-Flip let operators keep subjects in view without changing their handling perspective, while intelligent Auto-Tracking capabilities allow them to attain and track their target virtually hands-free.

Versatile monitoring with superb low light performance


Zoom-in to far away subjects and monitor wider areas using the powerful 30x optical zoom lens with a wide 58.4° angle of view. The bright IR Corrected and wide f/1.4-4.6 aperture High-UD lens provides clean sharp images day or night and offers improved low light performance. Minimum subject illumination is 0.03 lux (colour) to 0.002 lux (mono). Optimised H.264 bit rate and ADSR technology improve bandwidth control and allow operators to freely define areas of the scene where the best quality imaging is needed. Image enhancing Haze Compensation automatically adjusts image contrast to make environments with fog, haze or smog easier to see. It can also bring distant scenes captured at high zoom into clearer view.

Fast, accurate and intelligent with precise control


Effectively track fast moving subjects with a highly accurate and responsive 450°per second Pan/Tilt mechanism, which offers faster panning, quicker acceleration and more precise stopping accuracy. A wide range of intelligent detection functions can automatically alert operators to alarming situations and activate recording. These include Intruder Detection, which identifies moving objects entering a specified area, and Scream Detection, which recognises abnormal human sounds like screams or yells. The camera also features Audio and Alarm inputs, while installation time and cost is reduced thanks to a simple pigtail cable connection.

Outdoor-ready with vandal and environmental protection


The VB-R11

Toote tehnilised andmed

Lisateave toote Canon VB-R11VE, selle funktsioonide ja võimaluste kohta.

DIGIC NET II

Tõhus võrgutöötlus

Digic DV III

Pildikvaliteedi ja juhtimise haldamine

1.3 Mega Pixel

Kvaliteetsed pildid

PTZ

Panoraamimine, kallutamine, suumimine

360_degree_Revolving

Pidev pööramine

Auto Tracking

Jälgige subjekte käed-vabalt

IK10

Kontrollitud vandaalikindel kaitse

Drag to move

Lihtne PTZ-juhtimine

Area zoom

Lihtne sihtimine

Preset Tours

Automatiseeritud patrullimine

All weather Model

Parem ilmastikukindlus

Auto DayNight

Eemaldatav infrapunafilter

Intelligent Function

Videosisu analüüs

Intrusion Detection

Tsooni kaitse

Scream Detection

Heli tuvastamine

PoE plus

Toide Etherneti kaudu

ADSR

Parem ribalaiuse juhtimine

Linked Event

Tingimuslikud häired

SD Card

Nurkade salvestamine

CCMT

Mitme kaamera haldamine

  • VB-R11VE põhiseade
  • Seadistamise CD-ROM
  • Toite liidesekaabel
  • I/O liidese kaabel
  • Mutrivõti
  • Paigaldusjuhend
  • Garantiikaart
  • Garantiikaardi brošüür
  • Pakkematerjalid

Vaatenurga (Angle of View, AOV) kalkulaator

Vajaliku kettaruumi (Required Disc Space, RDS) kalkulaator

Kaamera paigutuse simulaator (Camera Layout Simulator, CLS)
