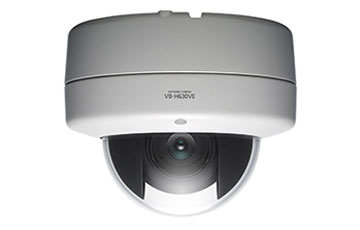

Canon VB-H630VE


The VB-H630VE Full HD fixed dome IP security camera with vandal-resistant and IP66 rated body is ideal for harsh outdoor conditions. Monitor and record activity day and night with an ultra-wide 111° field of view.

Kasulikud omadused

  • External protection thanks to rugged, weatherproof housing
  • Excellent image quality with Full HD and 3x wide optical zoom
  • Removable IR cut filter gives 24 hour monitoring capabilities
  • Remote Pan/Tilt/Rotate/Zoom (PTRZ) function reduces installation time
  • Flexible monitoring and recording with dual H.264 streams


Vaadake toodet Canon VB-H630VE üksikasjalikumalt

Superior image quality and best-in-class optics

Protect and monitor your site in Full HD with superior image quality, utilising Canon DIGIC DV III image processor. An ultra-wide 111° angle of view with 3x optical and 4x digital zoom lens, combined with a removable IR Cut Filter, allows you to see everything at any time of the day. Electronic rear focus system and bright f/1.2 (wide) lens provides superior performance.

Vandal-resistant and waterproof design

With an alloy aluminium exterior housing and strong polycarbonate resin dome, the VB-H630VE camera is impact resistant up to 50 Joules. IP66 dust and waterproof rating makes it ideal for outdoor use. Operational temperatures of -10°C to 50°C and a built-in fog reduction mechanism makes it ideal for harsh environments. By adding an optional heating unit the camera can perform in conditions as cold as -30°C.

Powerful video performance

Canon DIGIC NET II network processor features an H.264 encoder, which creates both high-quality and high-compression video. Meanwhile, enhanced noise reduction (NR) control and colour reproduction gives you visible colour even in low-light conditions. Auto Smart Shade Control (Auto-SSC) improves visibility of foreground objects in bright backlit scenes. Class-leading low-light capabilities and True Day/Night operation ensures great results in a range of environments.

Intelligent and security focused

Intelligent Functions help operators to identify alarming situations, by analysing differences between different areas. It is possible to use up to 15 functions in parallel on one camera. A choice of six different Intelligent Functions includes Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection and Volume Detection. Detected activity can be set to activate recording, uploading images to a server or sending an email notification. By using an SD card you can

Toote tehnilised andmed

Lisateave toote Canon VB-H630VE, selle funktsioonide ja võimaluste kohta.


Tõhus võrgutöötlus

Digic DV III

Pildikvaliteedi ja juhtimise haldamine

Full HD

Täis-HD eraldusvõime


Kontrollitud vandaalikindel kaitse



Auto DayNight

Eemaldatav infrapunafilter

Intelligent Function

Videosisu analüüs

Power over Ethernet

Toide Etherneti kaudu

SD Card

Nurkade salvestamine


Mitme kaamera haldamine

  • VB-H630VE põhiseade
  • Toitekonnektor
  • Seadistamise CD-ROM
  • Turvajuhe
  • Heli liidesekaabel
  • Mutrivõti
  • Mall
  • Paigaldusjuhend
  • Garantiikaardi brošüür

Vaatenurga (Angle of View, AOV) kalkulaator

Vajaliku kettaruumi (Required Disc Space, RDS) kalkulaator

Kaamera paigutuse simulaator (Camera Layout Simulator, CLS)
